High Quality 1mm Plastic PVC Rigid Sheet for Building Material China Suppliers

High Quality 1mm Plastic PVC Rigid Sheet For Building Material China Suppliers

Reviews

MOQ: Default
Port: Hangzhou
Packaging: Customizable
Lead Time: Default
Size: Default Size
Color: Default Color

Category: PVC PRODUCTS

Get Inquiry

Description:

Product Description

Company Info.

Overview
Certifications
Company Profile
Product Parameters
Packaging & Shipping
FAQ

Product Description

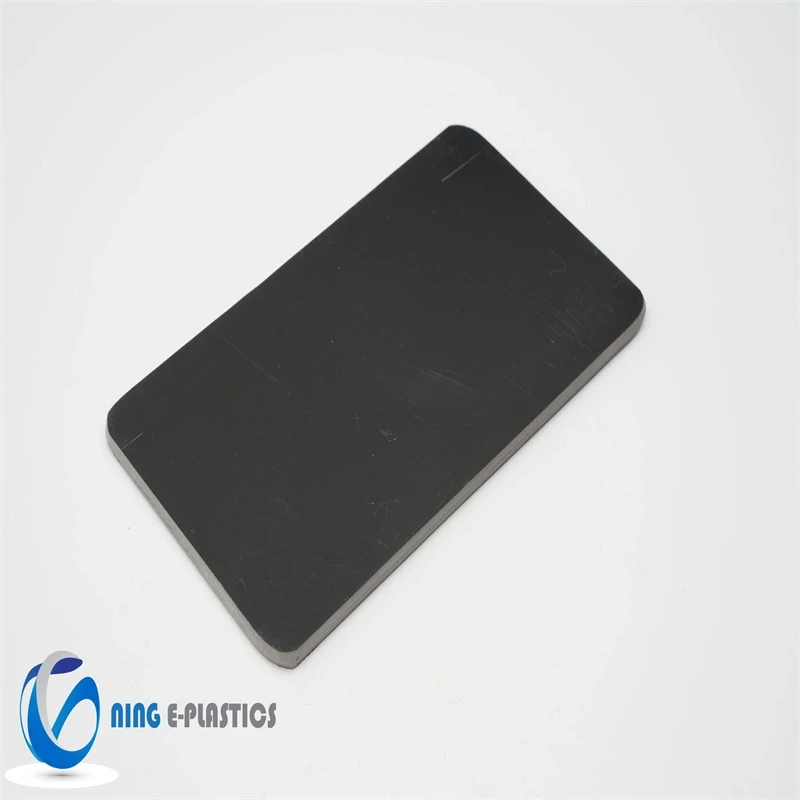

PVC Sheet

PVC items :

Colour :Dark grey ,Light grey ,black

PC sheet :thickness :1-60mm

Size:1200*2400mm/1000*2000mm

PVC rod Diameter:12-350mm,length :1000-30000mm.

PVC is the most widely used member of the vinyl family. Common applications include chemical processing tanks, valves, fittings & piping systems. PVC The outstanding performance of PVC includes high mechanical strength, high hardness, good chemical resistance, electrical insulation, good printing and welding. PVC modified varieties including high polymer PVC, chlorinated PVC and PVC / ABS alloy. Its working temperature is 0ºC~+70ºC

Product Properties :

high chemical stability,fine anti-fire,super-transparent 2.highly UV.stabilized,good mechanical properties,high hardness and strength

3.the sheet aslo has well aging resistance,good selfextinguishing property and reliable insulativity,

4.Moreover the sheet is waterproof and has very good smooth surface,and is non deformable.
5. Application:chemical industry,oil industry,galvanization,water purification equipments.

Application: environment protection equipments,medical appliance and so on.
important item: the sheet anti-stastic,anti-UV,anti-sticky

Application :

Machining; Cutting, sawing, turning, drilling, planing, milling, grinding & screwing.

Welding;Hot-gas, heated-tool & folding.

Eviroment protection,chemical industry,mentallurgy of rare metals, extraction work of rare earth,water treatment, construction industry and bridge-building industry

MECHANICAL PERFORMANCE
Content/Features/Property	Testing standard	Unit	PVC	Anti-static PVC	Conductive PVC
Long Term Working Tem		ºC	12~28	55
Density	ASTM D792	g/m³	1.55	1.55
Yield Stretch Strength	ASTM D638	Mpa	50	90
Breaking Stretch Strenghth	ASTM D639	Mpa
Breaking Stretch Rate	ASTM D638	%	10
Bending Modulus	ASTM D790	Mpa	2400	3000
Hardness	Shore type D	Mpa	108	82
Impact Strength	ASTM D256	KJ/	50
Thermal Properties
Melting Point	DSC	ºC	120	120
Heat defection temperature	ASTM D648	ºC	70
MAX Operating Termperature(short term)		ºC
Thermal conductivity	23ºC	W/(K-M)
Coefficient of linear expansion	ASTM D696	10-5-1/K	80×10^-6	80×10^-6
Electrical Features
Dielectric constant	ASTM D150	-
Dielectric loss coefficient	ASTM D150	-
Volume resistance	ASTM D257	Ω.cm	10¹⁵	10⁸	10⁴
Surface resistance	ASTM D257	Ω	10¹⁶	109	10⁴
Dielectric strength	ASTM D149	KV-mm	30	-	-
Chemical Features
Balance Water Absorption	23ºC,60%RH	%	0.2	0.2
Acid Resistance	23ºC,60%RH		+
Alkali Resistance			+
Acid and Alkali Water Resistance			+
Aromantic Compound Resistance			0
Ketone Resistance	23ºC,60%RH		-
Hot Water Resistance	23ºC,60%RH		+
Others
Combustibility	UL 94		HB		V-0
Media	CLO 2 (8-9 GPL) & Clorida dioksida		+
Non-toxic harmless sexual	EEC90/128FDA		+
Friction coefficient	DIN53375		0.35
Ultraviolet UV resistance			0

1. Q: What is your delivery time?

A: It depends on the volume, usually it is about 7 days.

2. Q: How can I get a sample?

A: Small size of sample are free, you only need to pay for the shipping cost, or you can provide your UPS, DHL, Fedex, TNT courier account to us. Customized size of sample should be charged.

3. Q: What is your payment ?

A:30% T/T in advance, balance before shipment. Other terms negotiable.
